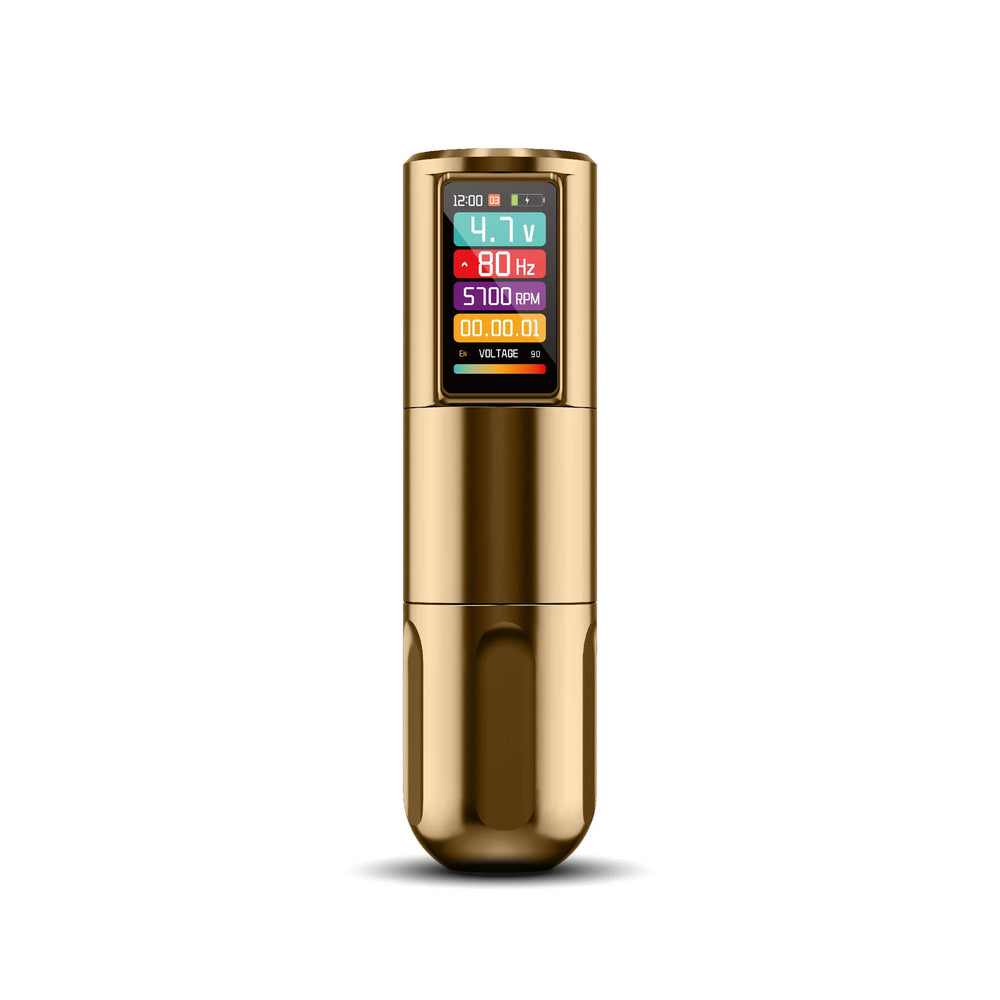

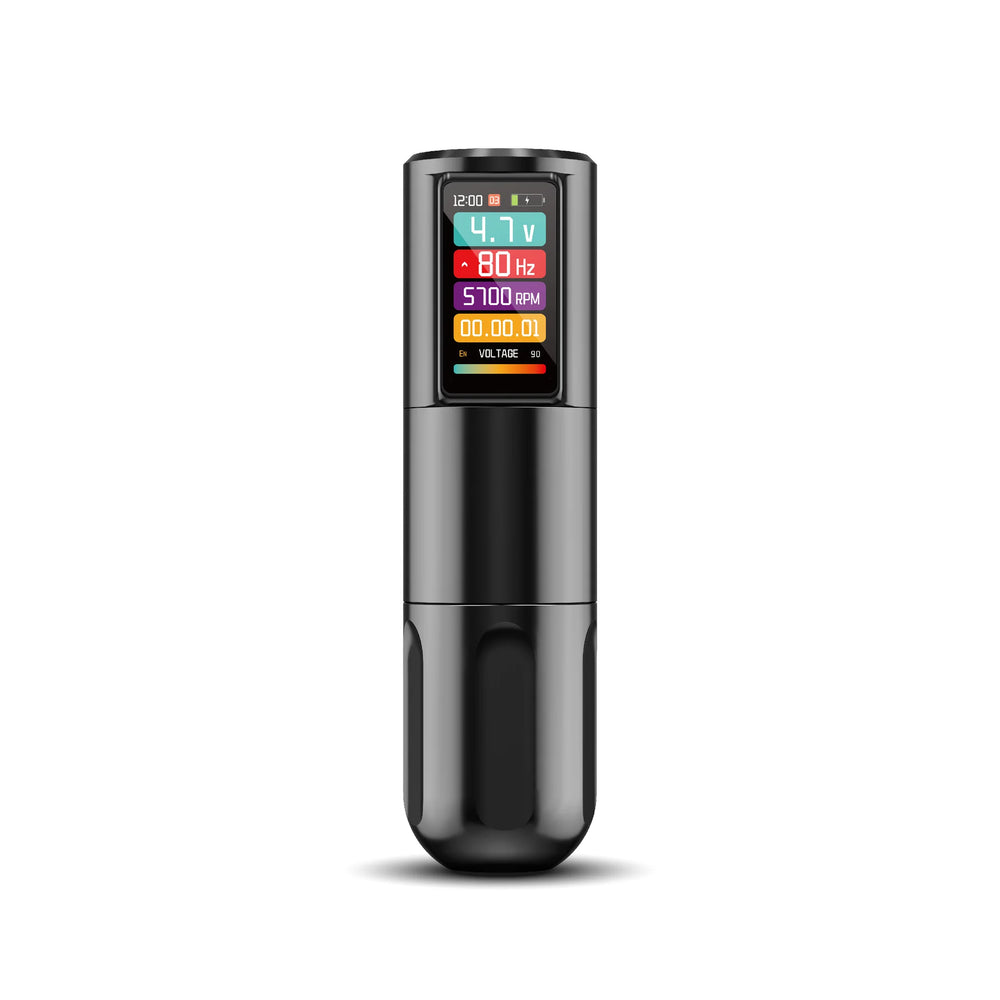

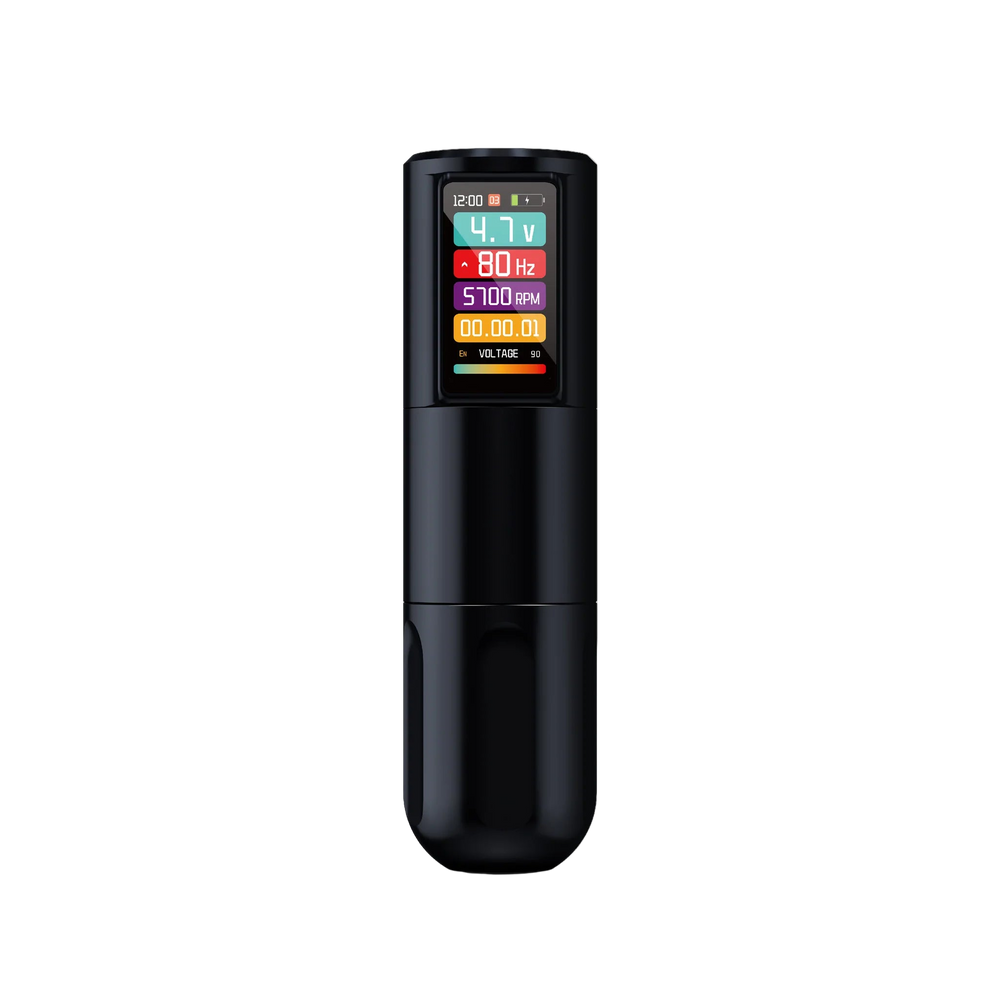

Inklab T7 Max

• POWER Button (Botton)
• SWITCH Button (Top)
• UP Button (Right)
• DOWN Button (Left)

Power On/Off: Press and Hold the POWER Button for 2 seconds or until the screen lights up with the InkLab logo (or goes dark if powering off)

Adjust Voltage/Frequency: use the UP and DOWN buttons to to adjust your voltage by increments of 0.1volts. For a Hands free option check out Voice Control

Create & Change Presets: Presets are automatically created when you change the voltage or Frequency, all changes automatically save and are stored even when the machine is powered down.The preset number is in a small red square next to the time in the upper portion of your  machine's display. Single tap the SWITCH button while the machine is off or on to cycle thru presets (1-5). For a Hands free option check out Voice Control

Switching Modes: Press and hold the SWITCH button to switch between VOLTAGE and SPEED Modes. For a Hands free option check out Voice Control

FREE MODE: When in Speed Mode, press and the SWITCH & UP buttons simultaneously to move into FREE Mode. You can now use the UP & DOWN buttons to adjust your voltage without changing the Frequency/Speed of the machine. Once done press the SWITCH button to go back into Speed mode and Adjust the frequency without changing the set Voltage.

For more info on how to use MODES scroll down to the MODE section

Switching Interfaces/Displays: Both SPEED and VOLTAGE mode have 1 shared and 1 unique display option. Once in your desired mode double click on the SWITCH button to change your display. For a Hands free option check out Voice Control

Turn Voice Control Off/On: The T7’s Voice control function is on by default, but can be turned on or off by pressing and holding the MODE and DOWN buttons simultaneously. Once the Green light flashes you are good to go.

Stop Watch: The Stop watch timer will automatically start when you start your machine and stop when you turn it off, to reset the timer to 0:00 double tap the POWER button at any time.

Time: Press and hold the UP & DOWN buttons simultaneously to change the time of day on your machine. Once flashing use the UP or DOWN button to adjust the hour, then press the POWER button to move to the minutes. Use the same buttons to adjust the minutes. Press the POWER button to lock in the time

Voice Control

The T7’s Voice control function is on by default, but can be turned on or off by pressing and holding the MODE and DOWN buttons simultaneously. Once the Green light flashes you are good to go.

When ON, Voice Control can be awakened by saying “Hey Seven” when the green light flashes you know its ready for one of the following 12 commands

1. “Start Work” - Get’s your needles moving, and starts you working
2. “Finish Work” - Stops your machine running when you need  a break
3. “Turn Off” - powers down your machine
4. “Switch Interface” - Changes the screen’s display back and forth from the Voltage display to the Frequency display.
5. “Switch Mode” - Switches between Speed and Voltage modes
6. “First Gear” - jump to Preset 1
7. “Second Gear” - jump to Preset 2
8. “Third Gear” - jump to Preset 3
9. “Fourth Gear” - jump to Preset 4
10. “Fifth Gear” - jump to Preset 5
11. “Up Shift” - Increases Voltage by 0.1v
12. “Down Shift” - Decrease Voltage by 0.1v

Insider Tips: You only have to say “Hey 7” to wake up your T7, and not before each command. Leave a few seconds between each command, give your machine a moment to adjust. Like you, it doesn't like having a bunch of orders barked at it in rapid succession.

Voltage Mode

No explanation needed, this is how 99.9% of all Pen/Rotary Tattoo Machines operate. In VOLTAGE MODE you can adjust the machine's voltage using the UP and DOWN buttons (or voice control) by increments of 0.1v

The Voltage range on the T7 Max is 4-7volts

Speed Mode

Under speed mode, you can maintain big power while choosing your preferred speed. When in speed mode, the T7 maintains a voltage of 9v, allowing you to adjust the frequency/speed from 180rpm to 9000rpm (frequency 3hz to160hz).

Free Mode

Free Mode allows you the freedom to customize voltage and speed separately to create your personalized setup: “4v to 12v” “3hz to 150hz” and “180rpm to 12000rpm”.

Think of Free Mode as giving you back the ability to change out the back and front spring on a coil machine, You can decide power and speed freely and separately.

The Battery:

The T7 Max comes with a large 2000mAh that will provide 6-8hrs of continuous tattooing and a rapid charge that will have you back at 100% in 1.5-2hrs

Keep an eye on the onscreen Energy Meter displays which let you know when you're using more energy draining your battery quicker.

Type-C Cable&Adapter are provided. Additional batteries are also available for purchase.

The Motor:

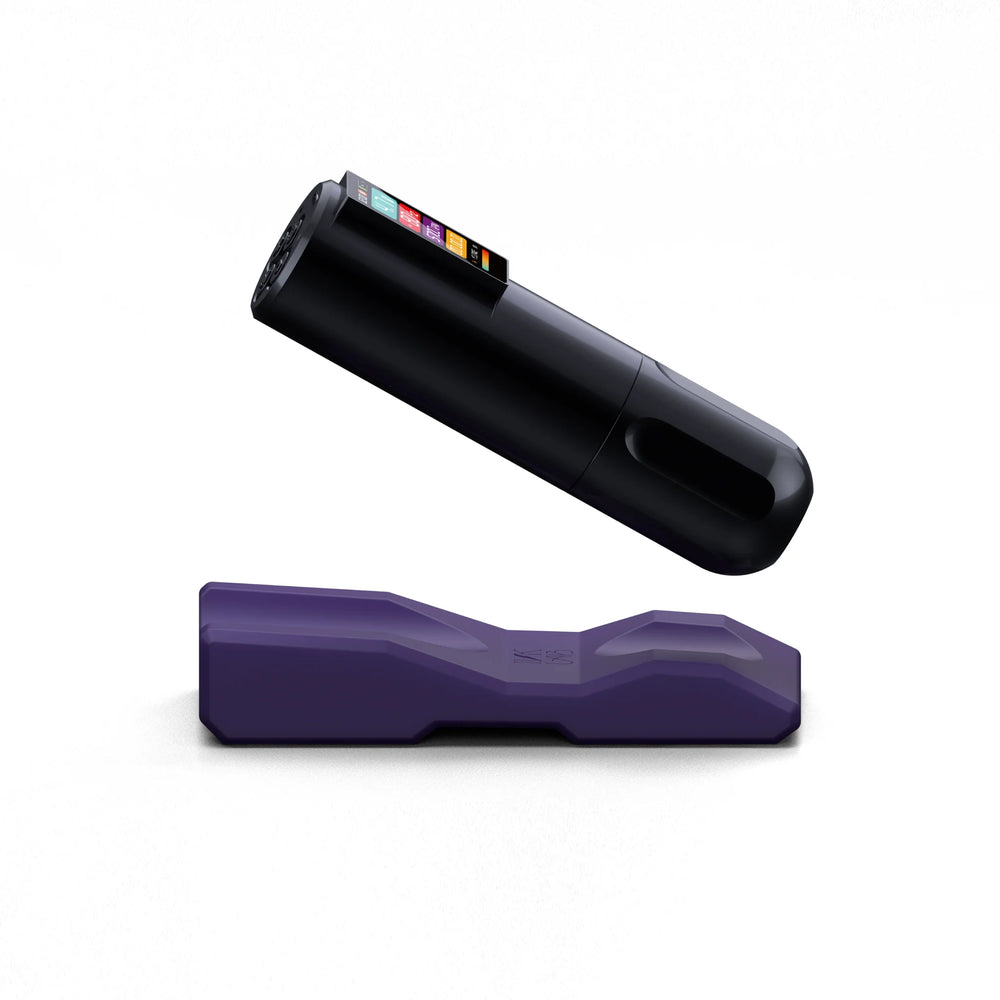

Each T7 Max comes with a slick rubber anti roll magnetic base. Not only will it keep your machines from rolling away from you, or even worse off your station,  but an internal magnetic switch will turn your machine off and on by simply laying it down or picking it up. One less touch point.
